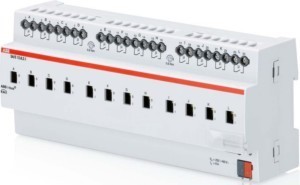

Switch actuator for bus system 2CDG110183R0011

Datasheet

• Bus system KNX: yes
• Bus system KNX radio: no
• Bus system radio frequent: no
• Bus system LON: no
• Bus system Powernet: no
• Other bus systems: None
• Mounting method: DRA (DIN-rail adapter)
• Width in number of modular spacings: 12
• Local operation/hand operation: yes
• With LED indication: no
• Suitable for C-load: yes
• Max. number of switching contacts: 12
• Nominal rated current: 6A
• Rated operating voltage: 21 - 31V
• Different phases connectable: yes
• Bus connection included: yes
• Modular expandability: no
• Degree of protection (IP): IP20
