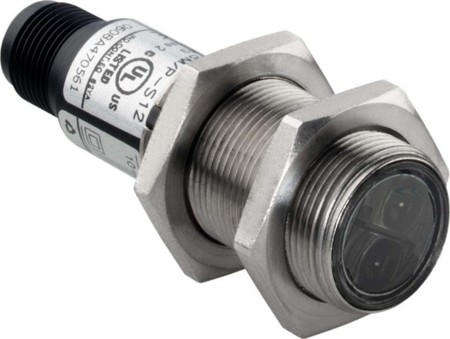

Reflection light barrier 50083184
Datasheet
- Max. output current: 100mA
- Type of electric connection: Connector M12
- Type of switching output: PMP/PNP
- Type of switch function: Anticoincidence
- Operation agent-safety class: Safety class 2
- Construction type housing: Cylinder, screw-thread
- Switch function: Light-/dark switching
- Material of optical surface: Plastic
- Material housing: Metal
- Ambient temperature: -25 - 60°C
- Time of reaction: 0.1ms
- Switching frequency: 5000Hz
- Voltage type: DC
- Laser protection class: Class 1
- Wavelength of the sensor: 650nm
- Type of light: Laser diode, red light
- Degree of protection (IP): IP67
