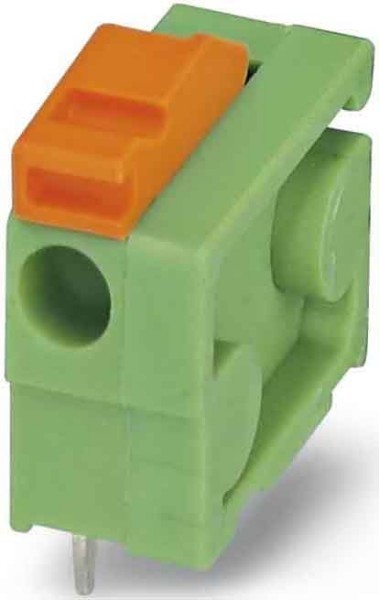

Printed circuit board terminal 12.7 mm 1 1 1789634

Height: 12.7mm
Number of electrical connections: 1
Number of levels: 1
Modular spacing connections: 3.81mm
Angle PCB/conductor connection: 0°/180° (horizontal)
Rated current In: 12A
Nominal rated voltage: 160V
Rated surge voltage: 2.5kV
Over voltage category: III
Pollution degree: 2
Connection type conductor: Spring clamp connection
Connectable conductor cross section solid-core: 0.14 - 1mm²
Connectable conductor cross section fine-strand with cable end sleeve: 0.25 - 0.34mm²
Connectable conductor cross section fine-strand without cable end sleeve: 0.14 - 1mm²
Connectable conductor cross section multi-wired: 0.14 - 1mm²
Connection type PCB: Soldering connection
Material connection surface: Tin
Length pin: 3.4mm
Material insulation body: Thermoplastic
Colour housing: Green
Inflammability class of insulation material acc. with UL94: V0
Type of PCB fastening: Connecting contact
Type of fastening: Solder
