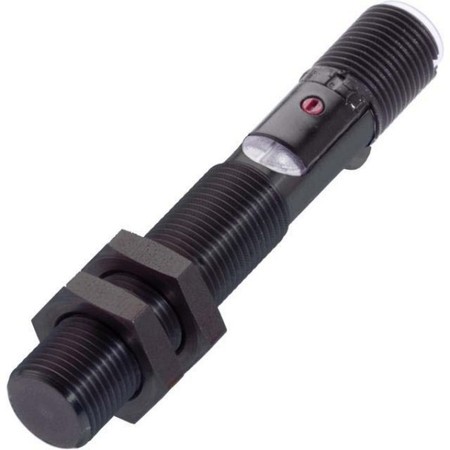

Capacitive proximity switch 75 mm BCS00PJ

Datasheet

• Length of sensor: 75mm
• Diameter sensor: 12mm
• Mechanical mounting condition for sensor: Concise
• Switching distance: 4mm
• Suitable for safety functions: no
• Type of switch function: Normally open contact
• Type of switching output: PNP
• Type of electric connection: Connector M12
• Number of semiconductor outputs with signalling function: 1
• Number of contact energized outputs with signalling function: 0
• Number of protected semiconductor outputs: 0
• Number of protected contact energized outputs: 0
• Type of actuation: Other
• Type of interface: None
• Type of interface for safety communication: None
• Construction type housing: Cylinder, screw-thread
• Coating housing: Other
• Cascadable: no
• Max. output current at protected output: 100mA
• Supply voltage: 10 - 30V
• Rated control supply voltage Us at DC: 10 - 30V
• Voltage type: DC
• Switching frequency: 100Hz
• With monitoring function downstream switching devices: no
• Material housing: Plastic
• Compression-resistant: no
• Explosion safety category for gas: None
• Explosion safety category for dust: None
