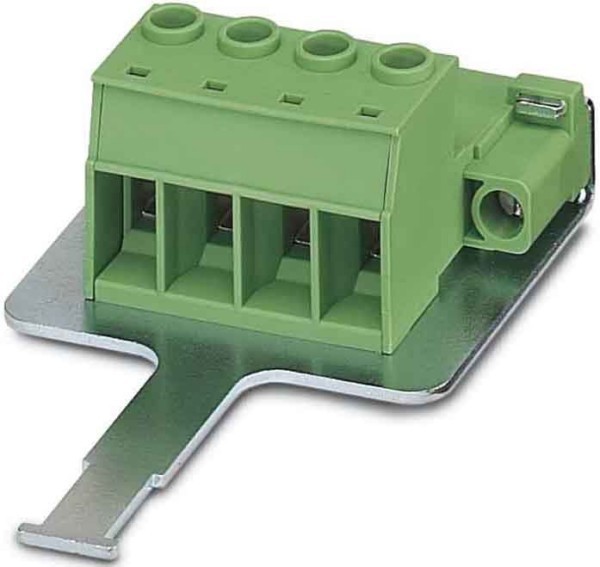

Cable connector Printed circuit board to cable Pin 4 1970346

Type of connection: Printed circuit board to cable
Contact type: Pin
Number of plug-in contacts: 4
Number of plug-in contact rows: 1
Modular spacing contacts: 10.16mm
Modular spacing connections: 10.16mm
Angle contact/conductor connection: 180° (horizontal)
Rated current In: 76A
Nominal rated voltage: 1000V
Rated surge voltage: 8kV
Over voltage category: III
Pollution degree: 2
Connectable conductor cross section fine-strand without cable end sleeve: 0.75 - 16mm²
Connectable conductor cross section fine-strand with cable end sleeve: 0.5 - 16mm²
Connectable conductor cross section solid-core: 0.75 - 16mm²
Connectable conductor cross section multi-wired: 0.75 - 16mm²
Type of electric connection: Screw connection
Connectable cable type: Other
Material of contact surface: Silver
Material insulation body: Thermoplastic
Material housing: Not applicable
Housing coating: Not applicable
Colour housing: Green
Inflammability class of insulation material acc. with UL94: V0
With protective conductor: no
