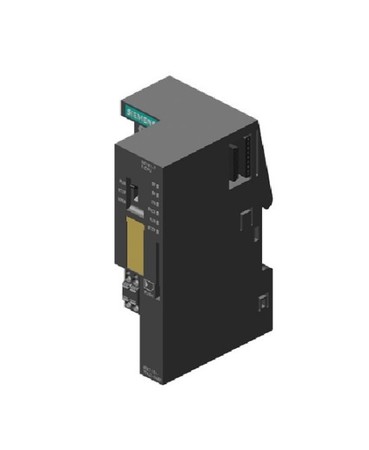

Fieldbus, decentr. periphery - basic appliance 6ES71517FA210AB0

Datasheet

• With integrated power supply: no
• Input voltage at AC 50 Hz: 0 - 0V
• Input voltage at AC 60 Hz: 0 - 0V
• Input voltage at DC: 19.2 - 28.8V
• Type of voltage (input voltage): DC
• Max. input current AC 50 Hz: 0A
• Max. input current AC 60 Hz: 0A
• Output voltage at AC 50 Hz: 0 - 0V
• Output voltage at AC 60 Hz: 0 - 0V
• Max. output current AC 50 Hz: 0A
• Max. output current DC: 0A
• Number of HW-interfaces industrial Ethernet: 0
• Number of HW-interfaces PROFINET: 0
• Number of HW-interfaces RS-232: 0
• Number of HW-interfaces RS-422: 0
• Number of HW-interfaces RS-485: 0
• Number of HW-interfaces serial TTY: 0
• Number of HW-interfaces USB: 0
• Number of HW-interfaces parallel: 0
• Number of HW-interfaces Wireless: 0
• Number of HW-interfaces other: 1
• With optical interface: no
• Supporting protocol for TCP/IP: no
• Supporting protocol for PROFIBUS: no
• Supporting protocol for CAN: no
• Supporting protocol for INTERBUS: no
• Supporting protocol for ASI: no
• Supporting protocol for KNX: no
• Supporting protocol for MODBUS: no
• Supporting protocol for Data-Highway: no
• Supporting protocol for DeviceNet: no
• Supporting protocol for SUCONET: no
• Supporting protocol for LON: no
• Supporting protocol for SERCOS: no
• Supporting protocol for PROFINET IO: no
• Supporting protocol for PROFINET CBA: no
• Supporting protocol for Foundation Fieldbus: no
• Supporting protocol for EtherNet/IP: no
• Supporting protocol for AS-Interface Safety at Work: no
• Supporting protocol for DeviceNet Safety: no
• Supporting protocol for INTERBUS-Safety: no
• Supporting protocol for PROFIsafe: no
• Supporting protocol for SafetyBUS p: no
• Supporting protocol for other bus systems: no
• Radio standard Bluetooth: no
• Radio standard WLAN 802.11: no
• Radio standard GPRS: no
• Radio standard GSM: no
• Radio standard UMTS: no
• IO link master: no
• System accessory: yes
• Degree of protection (IP): IP20
• Number of slots: 63
• With pluggable modules, digital I/O: yes
• With pluggable modules, analogue I/O: yes
• With pluggable modules, communication modules: yes
• With pluggable modules, function and technology modules: yes
• With pluggable modules, central modules: yes
• With pluggable modules, others: yes
• With potential separation: yes
• Fieldbus connection over separate bus coupler possible: yes
• Bus coupler for modular station connection available: yes
• Rail mounting possible: yes
• Width: 60mm
• Height: 119.5mm
• Depth: 75mm
