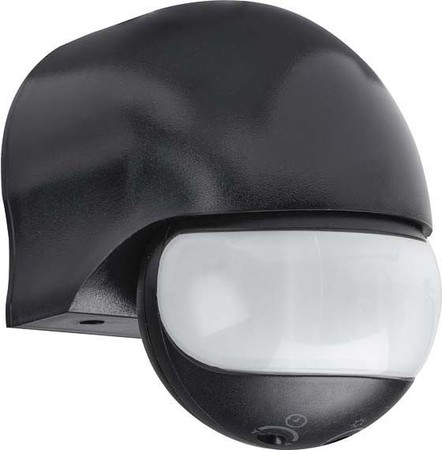

Movement sensor complete Movement sensor 94515

Datasheet

• Model: Movement sensor
• Constant light control: yes
• HVAC-control: no
• Forced switch off: no
• Animal zone: no
• Creep-under protection: no
• Networkable: no
• Optimum mounting height: 2.5m
• Staircase monitoring: no
• Bridging switch: no
• Max. transmission range sideways: 6m
• Max. transmission range frontally: 12m
• Suitable for wireless transmission: no
• Remote operation: no
• Response value sensitivity adjustable: yes
• Response value luminosity adjustable: yes
• With signal unit: no
• Teach-function for response value luminosity: no
• Dim function with dimmer basic element: no
• Mounting method: Surface mounted (plaster)
• Material: Plastic
• Material quality: Thermoplastic
• Halogen free: yes
• Surface protection: Untreated
• Type of surface: Matt
• Colour: Black
• RAL-number (akin): 9005
• Degree of protection (IP): IP44
• Nominal voltage: 230V
• Min. switch-on time: 5s
• Max. duty cycle: 12min
• Detection angle horizontal: 180 - 180°
• Max. switching power: 1000W
• Temperature: -20.4 - -20.4°C
• Substation input: no
• Frequency: 50 - 50Hz
• Alarm function: no

Logistics

• Weight: 211 g
