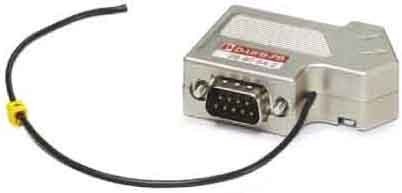

Surge protection device for data networks/MCR-technology 288064

Datasheet

• Max. continuous voltage DC: 5.2V
• Nominal discharge surge current (8/20): 0.35kA
• Nominal load current: 0.25A
• Voltage protection level core/core: 25V
• Voltage protection level core/earth: 25V
• Limiting frequency: 70MHz
• Mounting method: Other
• Connection 1: Clamp
• Pro-active thermo-control: no
• With remote signalling contact: no
• Signalling at the device: None
• Explosion-tested version: no

Logistics

• Weight: 54 g
